Home > Door Air Curtains >

Low Noise Dual Direction 2130M3/H Cross Flow Door Air Curtains For Various Places

Foshan Nanhai Nanyang Electric Appliance & Motor Co., Ltd.
Contact Now

Low Noise Dual Direction 2130M3/H Cross Flow Door Air Curtains For Various Places

Brand Name : NANYOO / OEM / ODM

Model Number : FM-1012H3-2(Y)

Certification : CE/CB/CCC

Place of Origin : China

MOQ : 1 unit

Payment Terms : L/C, T/T, D/P, Western Union

Supply Ability : 15000 pcs per month

Delivery Time : 30-35 work days

Packaging Details : Carton With Foam Protection

Price : Negotiated

Fan Type : Cross Flow Fan

Product name : Remote Control Cross Flow Strong Wind Low Noise Metal Door Air Curtain / air curtain door

Operating voltage : 230 VAC, 220V, 115 VAC

Color : White, Customer Requirements, Silver

Size : 900MM to 2000 MM door width for options

Mounting Height : 2.3-3 M

Air volume : 2130 m3/h

Motor Material : Pure copper motor warranty for 5 years

Contact Now

Cross Flow Door Air Curtains Dual Direction Inlet Structure And Inlet Air More Smoothly

Dual Direction inlet structure and inlet air more smoothly , wind noise is more lower

Low Noise Dual Direction 2130M3/H Cross Flow Door Air Curtains For Various Places

Fibergalss material impeller , good sound insulation effect , heatproof , non-flammable , corrosion resistance

Low noise , durable / high material , good design , Excellence performance

Low Noise Dual Direction 2130M3/H Cross Flow Door Air Curtains For Various Places

Use fluid mechanics and engineering technology to optimize and upgrade the impeller , increase valid wind force ,

reduce the wind noise and drag coefficient .

On plane , the air friction between the wing surface and fuselage determines the efficiency of the air plance .

Microstructure use a textured surface made of fiberglass , it can reduces friction resistance .

so that the wind turbine blades have better aerodynamic performance .

and improve the service life of wind turbine blades

Low Noise Dual Direction 2130M3/H Cross Flow Door Air Curtains For Various Places

Impeller blades around mobility

Low Noise Dual Direction 2130M3/H Cross Flow Door Air Curtains For Various Places

PRODUCT PARAMETERS

Voltage/Frequency 220 - 240V / 50Hz , or 110V / 60Hz , 110V / 50Hz , 220V / 60Hz are all available

2 SPEEDS(With Or W/O The Remote Control)
Model Diameter of Impeller Input Power Air Velocity Air Volume Noise Fuselage Size Mounting Height
(mm) (W) (m/s) (m³/h)/CFM (dB) (mm) (m)
FM-1009H3-2(Y) 100 100 10-11 1550 ≤45 910×178×176 2.3-3
FM-1010H3-2(Y) 100 115 10-11 1720 ≤45 1005×178×176 2.3-3
FM-1012H3-2(Y) 100 135 10-11 2130 ≤46 1205×178×176 2.3-3
FM-1015H3-2(Y) 100 150 10-11 2650 ≤48 1500×178×176 2.3-3
FM-1018H3-2(Y) 100 180 10-11 3200 ≤50 1795×178×176 2.3-3
FM-1020H3-2(Y) 100 185 10-11 3550 ≤52 2000×178×176 2.3-3

Product noise value

Low Noise Dual Direction 2130M3/H Cross Flow Door Air Curtains For Various Places

Four advanced technology , it's differed from the others . (it's unusual )

1 / 30 years for motor R & D and manuafacturing , more reliable quality

2 / Use fluid mechanics rotor designs , the wind force got stronger and less noise

3 / Impeller with glass fiber material , good sound insulation performances / insulation / corrosion resistance and durable

4 / Dual Direction inlet air , wind noise is more lower

Low Noise Dual Direction 2130M3/H Cross Flow Door Air Curtains For Various Places

30 years professional technology focus on motor

Higher efficient , more quiet , Longer service life / Using bigger core diameter , longer core length ,

big stator slot dimensions and thicker copper wire .

under the same air volume and wind pressure , the motor design with lower power , provides more energy saving

and longer service life

Low Noise Dual Direction 2130M3/H Cross Flow Door Air Curtains For Various Places


DIFFERENT ANGLE TO SHOW ( 360 ℃ views )

Low Noise Dual Direction 2130M3/H Cross Flow Door Air Curtains For Various Places

INSTALLATION DIAGRAM

Step 1 Remover mounting plate from air curtain fuselage

Low Noise Dual Direction 2130M3/H Cross Flow Door Air Curtains For Various Places

Step 2 If installed on concrete and other hard wallk , need postion the mounting fix screw for the mounting plate on the wall ,

and then fix with M8 expansion screw ,the exposed part of the expansion screw is ensured to be in 13-15 mm .

Low Noise Dual Direction 2130M3/H Cross Flow Door Air Curtains For Various Places

Step 3 If mounted on a wooden board or soft , use STS tapping screw ,Fix the mounting plate ot the wall

Low Noise Dual Direction 2130M3/H Cross Flow Door Air Curtains For Various Places

Step 4 Installation method of glass door

1 / Use strong nail - free glue direct smear to installation , Solidity , Affordable and artistic .

Low Noise Dual Direction 2130M3/H Cross Flow Door Air Curtains For Various Places

2 / Make a strut horizontally for fixting the gusset plate of the air curtain machine

Low Noise Dual Direction 2130M3/H Cross Flow Door Air Curtains For Various Places

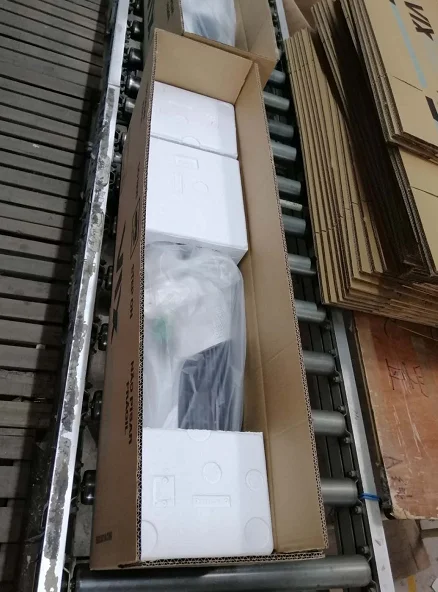

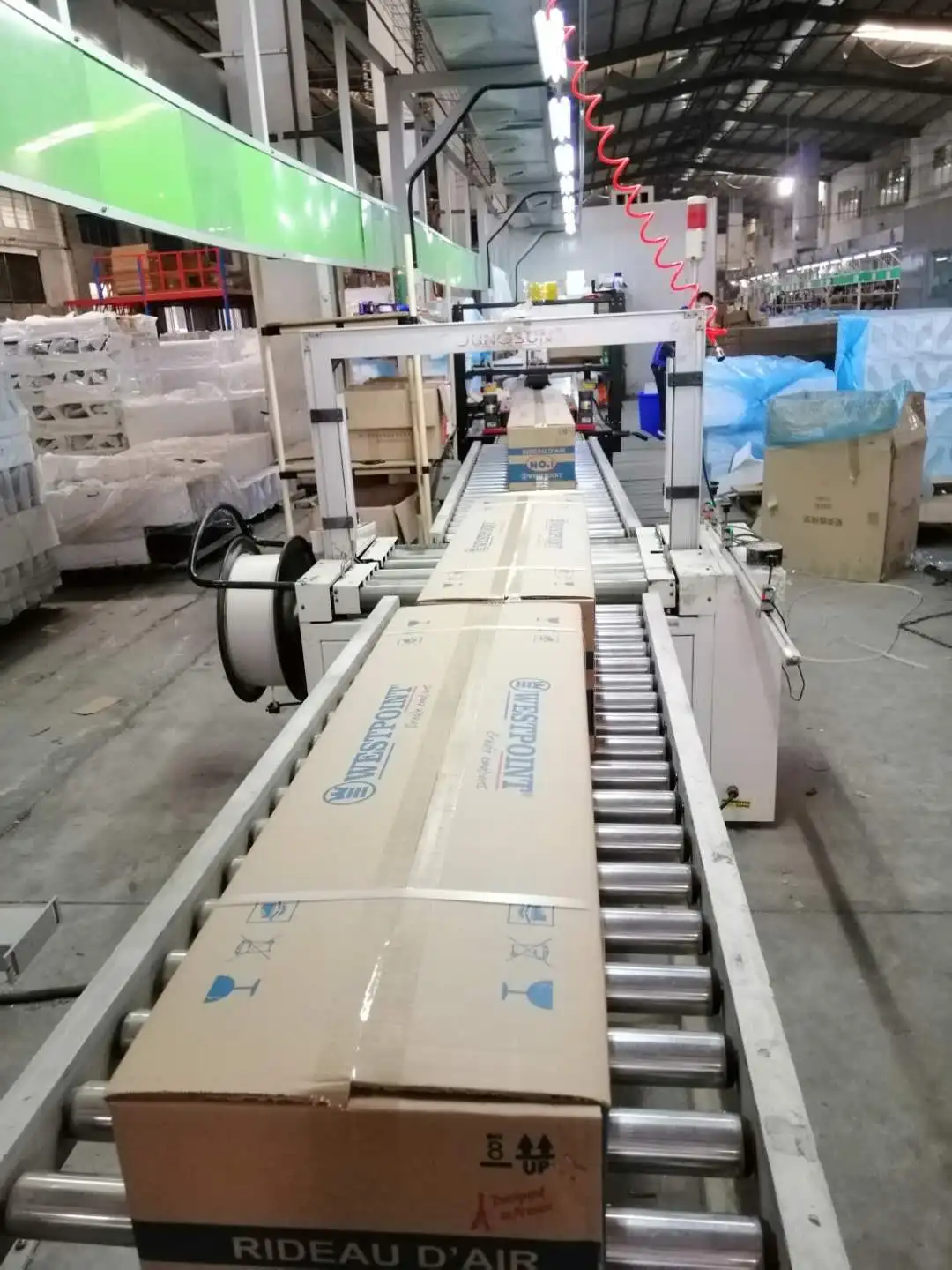

Packing & Delivery

Low Noise Dual Direction 2130M3/H Cross Flow Door Air Curtains For Various Places
Low Noise Dual Direction 2130M3/H Cross Flow Door Air Curtains For Various Places

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Certification

Low Noise Dual Direction 2130M3/H Cross Flow Door Air Curtains For Various Places

FAQ

Low Noise Dual Direction 2130M3/H Cross Flow Door Air Curtains For Various Places
